Alarm Panels

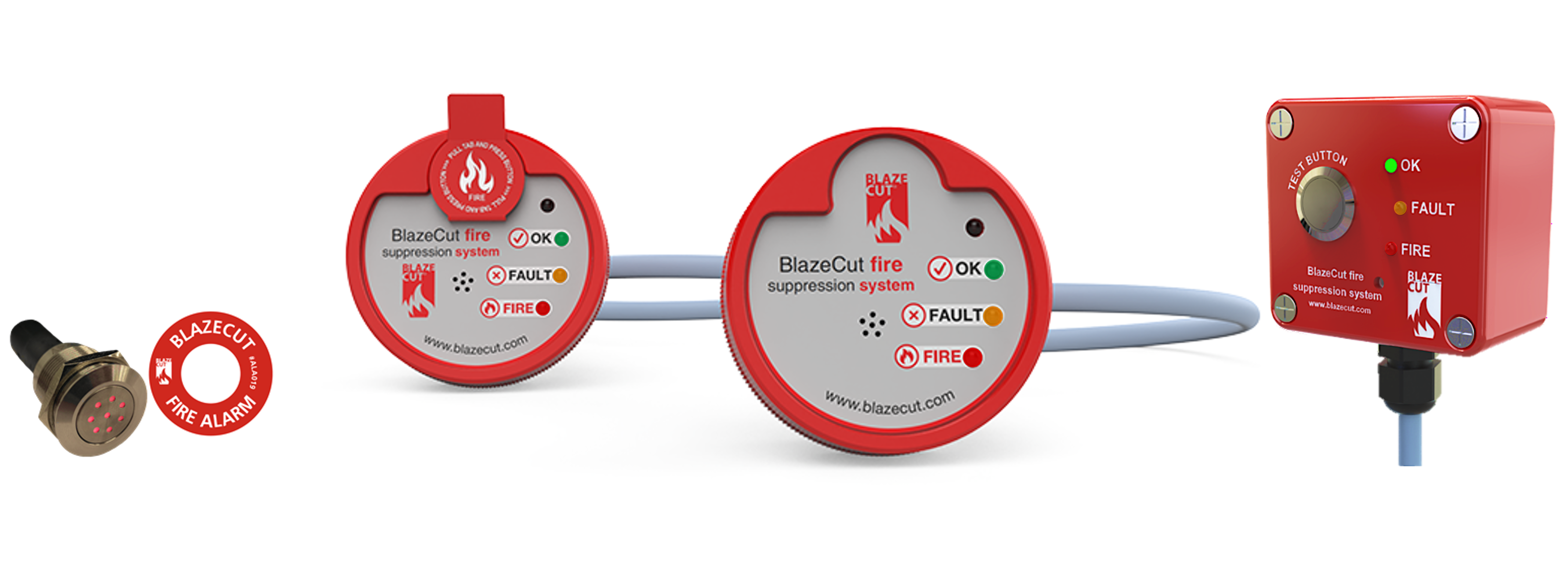

BlazeCut offers various integrated Alarm Panels, each Panel can be adapted to suit the T and C Series range. The Alarm Panels offer different features such as multiple fault identifications, integrated relay for fire signalling output and equipment shutdown. All have been EMC tested according to EHK 10-06 including IP testing according to EN 60529. The housing body design allows for optional mounting; flush mounted in a dash or the external bracket (AAP210/310) may be used to position the panel at any angle. Offering a small footprint design the BlazeCut Alarm panels (AAP200/300/400) are capable of handling harsh environments and rated to IP67. The flashing LED’s and 85dB fire warning system will alert the operator in the event of a fire.
AAP211 (C Series)
• Manual actuation button with tamper seal
• Programmable N/O-N/C relay output for fire signalling or equipment shut-down
• Includes data logging and the ability to enter service data comments
• Delay discharge and shutdown are programmable
• Optional use of pressure transducer or pressure switch
• Electrical circuit monitoring for faults
• Compact 55mm diameter design and a depth of 35mm
• Ingress Protection IP67 rated
• Supply voltage 9-32 Vdc
AAP210 (C Series)
• Programmable N/O-N/C relay output for fire signalling or equipment shut-down
• Includes data logging and the ability to enter service data comments
• Delay discharge and shutdown is programmable
• Optional use of pressure transducer or pressure switch
• Electrical circuit monitoring for faults
• Compact 55mm diameter design and a depth of 35mm
• Ingress Protection IP67 rated
• Supply voltage 9-32 Vdc
AAP310 ( T and C Series)
• Pre-programed from the factory
• N/O relay output for shutdown or fire signalling and low pressure
• Used for any pressure switch system T Series and C Series (BlazeTube systems)
• Can be used as an electronic fire warning detection system (BlazeWire, heat detectors, heat probes etc)
• Circuit monitoring for faults
• Compact 55mm diameter design and a depth of 35mm
• Ingress Protection IP67 rated
• Supply voltage 9-32 Vdc

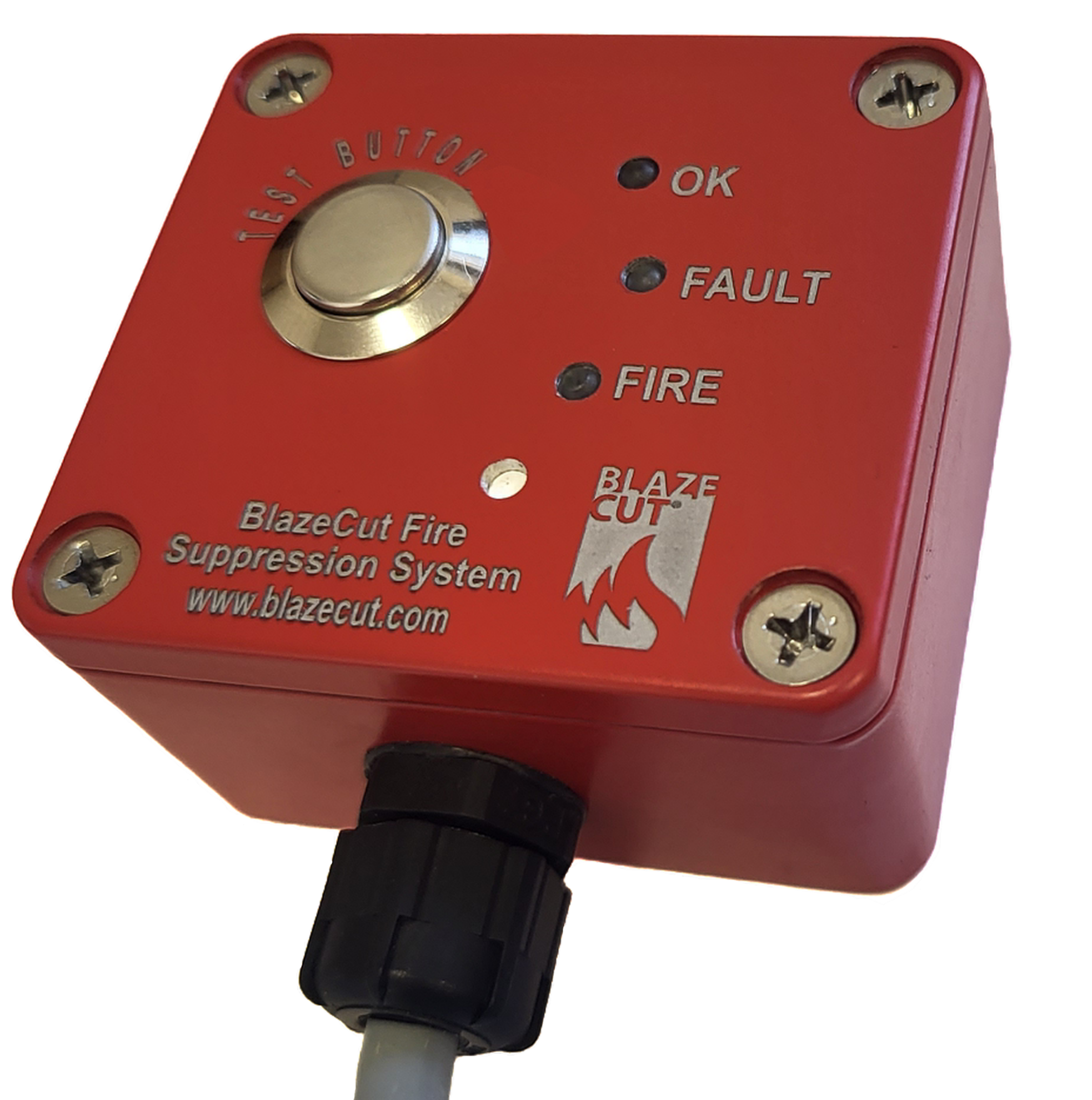

AAP400 (T and C Series)
• Durable aluminium body for harsh environments
• Design allows for optional mounting; flush mounted or box mounted
• Used for any pressure switch system T Series and C Series (BlazeTube Systems)
• Can be used as an electronic fire warning detection system (BlazeWire, heat detectors, heat probes etc)
• Electrical circuit monitoring for faults
• Small footprint design measuring 64×58 mm and a depth of 30mm
• Test Button
• Ingress Protection IP67 rated
• Supply voltage 10-30 Vdc
AWB012/AWB024 (T Series )
• Simple compact warning device (30mm diameter).
• Design allows for flush mounting to dashboard or panel
• Used with T Series pressure switch models
• 12 V or 24 V operation
• Red visual LED alert
• >80db audio buzzer
AFP020 (C Series)
• Suitable for fixed indoor applications only
• 4 conventional zones expandable to 20
• Supports up to 32 devices per zone
• System programming from the control panel
• Backlit graphic display
• Slim profile metal enclosure
• Supply voltage 230 Vac
| Feature/Function | AWB012 AWB024 |
AAP400 | AAP310 | AAP210 | AAP211 w/ fire button |
AFP020 |
|---|---|---|---|---|---|---|
| Red LED Fire alarm indicator | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Audible Warning Buzzer | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Flush Mount to panel | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Suitable for T Series | ✓ | ✓ | ✓ | ✓ | ||
| Suitable for C Series (DLP BlazeTube) | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Suitable for C Series (ILP Pneumatic BlazeTube) | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Suitable for C Series (ILP Electric BlazeWire) | ✓ | ✓ | ✓ | |||
| Fault Monitoring | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Stand alone mounting | ✓ | ✓ | ✓ | ✓ | ||
| Fault monitoring LED | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Dimming Sensor | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Signal for fire (engine shutdown, de-energisation) | ✓ | ✓ | ✓ | ✓ | ||
| Internal timer relay output | ✓ | ✓ | ✓ | ✓ | ||
| Wifi Programmable | ✓ | ✓ | ||||
| Data Logging function | ✓ | ✓ | ||||
| Manual actuation button | ✓ | |||||
| Pre-programmed from factory/Non Programmable | ✓ | ✓ | ✓ | |||
| Ingress protection | IP50 | IP65 | IP67 | IP67 | IP67 | IP30 |
| Suppy Voltage | 12Vdc or 24Vdc | 10-30Vdc | 9-32Vdc | 9-32Vdc | 9-32Vdc | 230Vac |
Other BlazeCut Products in the Range
BlazeCut offers the latest in automatic fire suppression technologies. The T Series is an easy-to-install tube style device, developed for small to medium enclosed spaces and the C Series is a cylinder style fire suppression system suitable for more larger and complex applications.
T Series Products
Suitable for small to medium enclosed compartments the BlazeCut T Series is a simple, self-contained fire suppression system where both the detection and agent storage is contained within a single length of tube. Allowing for fast and effective discharge.

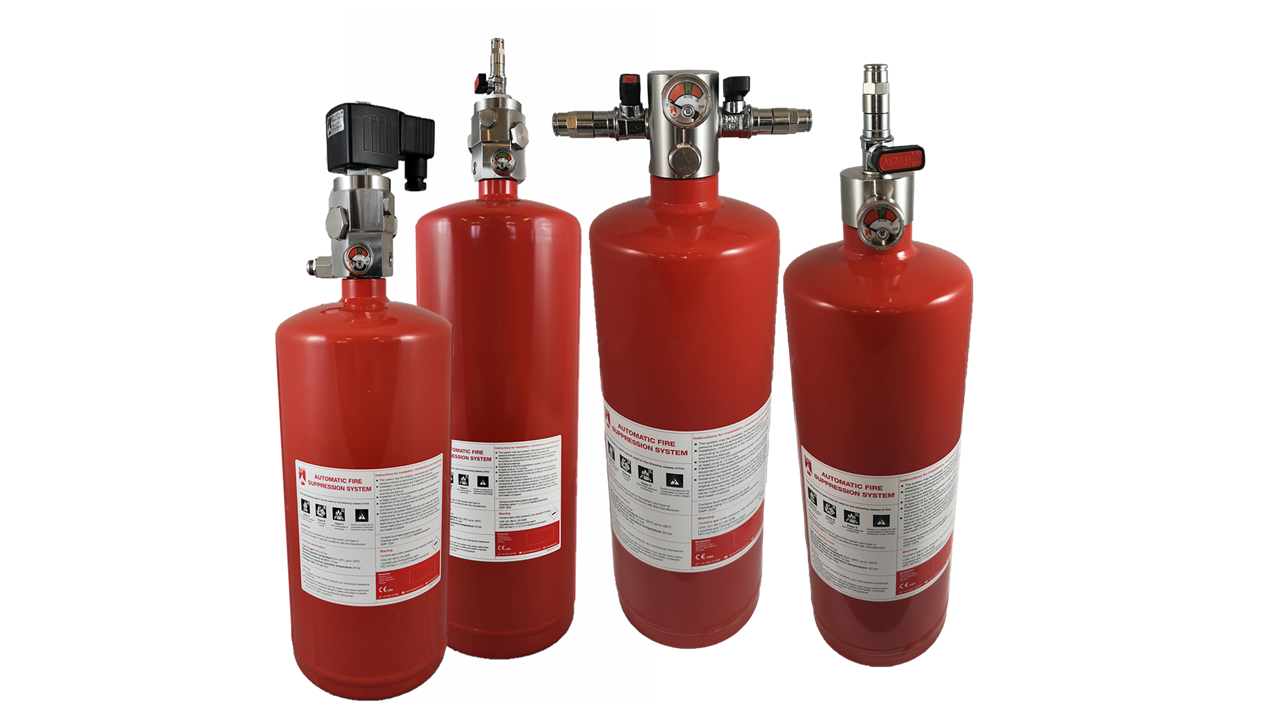

C Series Products
A pre-engineered fire suppression system using a cylinder for storing the fire agent, the C Series has two operating options; direct low-pressure or indirect low-pressure. These systems can be coupled with a wide range of alarm panels and accessories.
